Leadleds Outdoor Transparent Led Display TV Wall DIP346 Super Bright Long View Distance
$5,999.00
Skip to product information
Business name: Leadleds
SKU:
LLDC1531S-O
Leadleds Outdoor Transparent Led Display TV Wall DIP346 Super Bright Long View Distance
$5,999.00
Shipping calculated at checkout.
Order Handle Time: 12 ~ 15 business days, the shipping time is estimated at 3~ 7 days to arrive at your door.
Premium Warranty & Lifetime Technical Support
✓ 1-year parts replacement
✓ Lifetime Technical Support – Expert assistance
✓ Extended Maintenance – Continued service and support available after warranty expires
We stand behind our LED displays with comprehensive support—not just during the warranty, but for years to come.
Why thousands of customers choose Leadleds LED displays
✓ Premium Quality – Durable, high-brightness displays built to perform
✓ Lifetime Support – Expert technical assistance
✓ Proven Reliability – Trusted by businesses, schools, churches, and retailers
✓ Complete Warranty – 1-year parts replacement + ongoing maintenance
✓ Global Experience – Serving customers across multiple markets
✓ Custom Solutions – From single units to bulk B2B orders
Your investment. Our commitment. Long-term partnership.
Shipping
We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information, including the tracking number. Delivery times vary depending on your location.
9.8 x 6.6 Ft. Outdoor Waterproof Video Display Transparent Led Wall Super Bright Fast Programmable for Glass Building, Single-sided

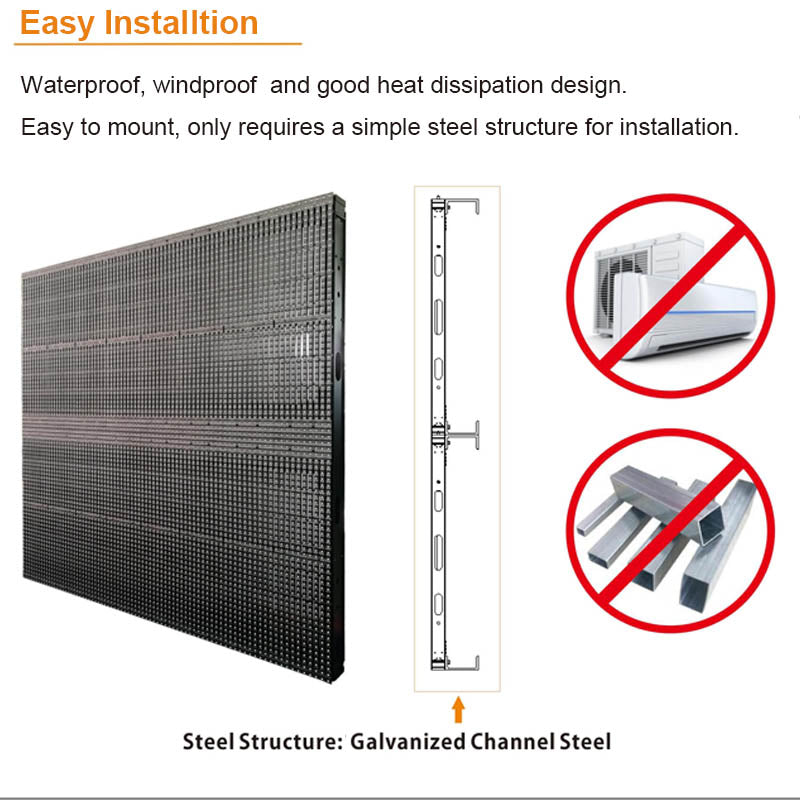

Waterproof, windproof, super brightness, good heat dissipation design, easy to mount.
Ideal for glass buildings, highways, and wall mounting.
Brand Name: Leadleds
Display Function: Video/Text/Animation/Symbol/time, etc
Usage: Outdoor waterproof aluminum frame
Tube Chip Color: Full Color Led Video Display Board LED Panel
Led Matrix: 192(W)x64(H)
Showing method: static/moving/scrolling/running etc
Packaging Details: EPE+inner box+carton+wooden
Capable offline display, playing your message doesn't need to connect any other devices.
Some of the advantages of using a transparent LED screen include:
Aesthetics: A transparent LED screen provides a unique visual appeal that traditional displays cannot offer. It can blend into its surroundings and become part of the environment.
Visibility: Since the display is transparent, it allows users to see through it, providing an unobstructed view of the environment behind it while still displaying content.
Energy-efficient: LED technology is energy-efficient, which means that transparent LED screens consume less power than traditional displays.
1. This outdoor led display housing color is Black
2. Font size of the text message is adjustable
3. Display function is video, picture, symbol, text message, graphics, etc.
4. Flash memory can store lots of different messages
5. Working voltage DC5V only
6. Input voltage is AC 100V-120V or 200-240V depends where the led panels will ship to
7. Multi-action for displaying, including snow, spray, twinkle, rotate, scroll, starburst, wipe and etc.
8. Different scrolling actions for your choice, like flashing, static, moving to left, moving to the right, and so on
9. Energy-efficient, support auto turn ON/OFF according to your setting
10. Support video playback, full-color scrolling picture, text display, time, Dynamic clock
11. Multi-language support - Alphanumeric (Roman-English), World Languages such as English, Spanish, Russian, French, Hebrew, etc.
| Module Parameter | ||
| 1 | Item | LLDC1531S-O |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP346 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | static |
| Parameter | ||
| 1 | Whole resolution | 192(W)x64(H) |
| 2 | Overall size | 3000(W)×2000(H)×85(D)mm |
| 3 | Cabinet quantity | 3pcs |
| 1 | Each cabinet weight | 19kg |
| 5 | Transparency Rate | 50.00% |
| 6 | Brightness | 8000cd/㎡ |
| 7 | Viewing angle | 120°(horz.), 60° (vert.) |
| 8 | Best View Distance | 15-100 meters |
| 9 | Grayscale | 14(bit) |
| 10 | Max Power Consumption | 450W/㎡ |
| 11 | Avg Power Consumption | 120W/㎡ |
| 12 | Working Voltage | DC5V |
| 13 | Input Voltage | AC200-240V or AC100-120V |
| 14 | Frame Frequency | 60Hz / 50Hz |
| 15 | Refresh rate | 1920Hz-3840 |
| 16 | Operation System | Windows/Me/2000/Xp/7/8/10/11, phone, cloud |
| 17 | Operating Temperature | ( -40℃～+50℃ ) |

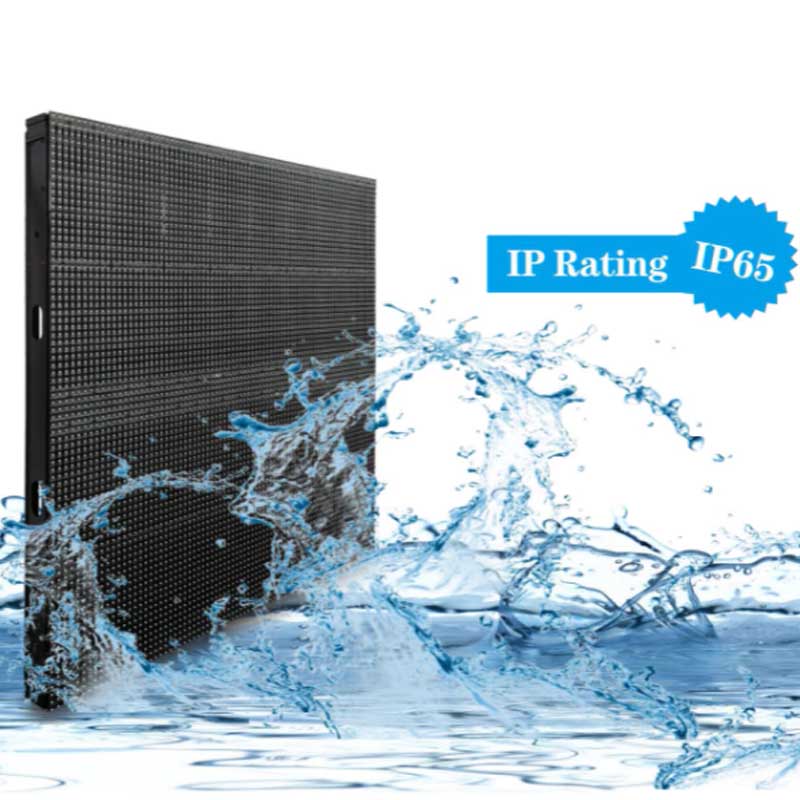

| 18 | IP Rating | IP65 |
What's in the package, it's ready to use.
Outdoor transparent led wall
Mounting brackets
Software and manual Security wooden packing.
* This transparent led display process time 12-15 business days
* Shipping by DHL/FEDEX/UPS express, shipping takes 5 ~7 business days to your doorsteps.
Upgrade Program
Transfer Your Traditional Sign to Leadleds Programmable LED Signs
Eco-Friendly LED Technology:
• 70% more energy efficient than traditional displays
• Long lifespan reduces waste
• Low heat emission
Save money while reducing your environmental impact.
