Leadleds Flexible Led Module Full Color Led Panel Matrix RGB Video Display
Tube Chip Color: Full Color
Model Number: P4
Display Function: Video
Module Size: 256mm*128mm
Module Resolution: 64*32
Module Weight: 0.3kg
Interface Way: HUB-75(16scan)
Driving Method: Constant Current Driving
Control Method: Synchronous Control
Max power: 20w/pcs
Play Format: Videos,Images ,Texts etc

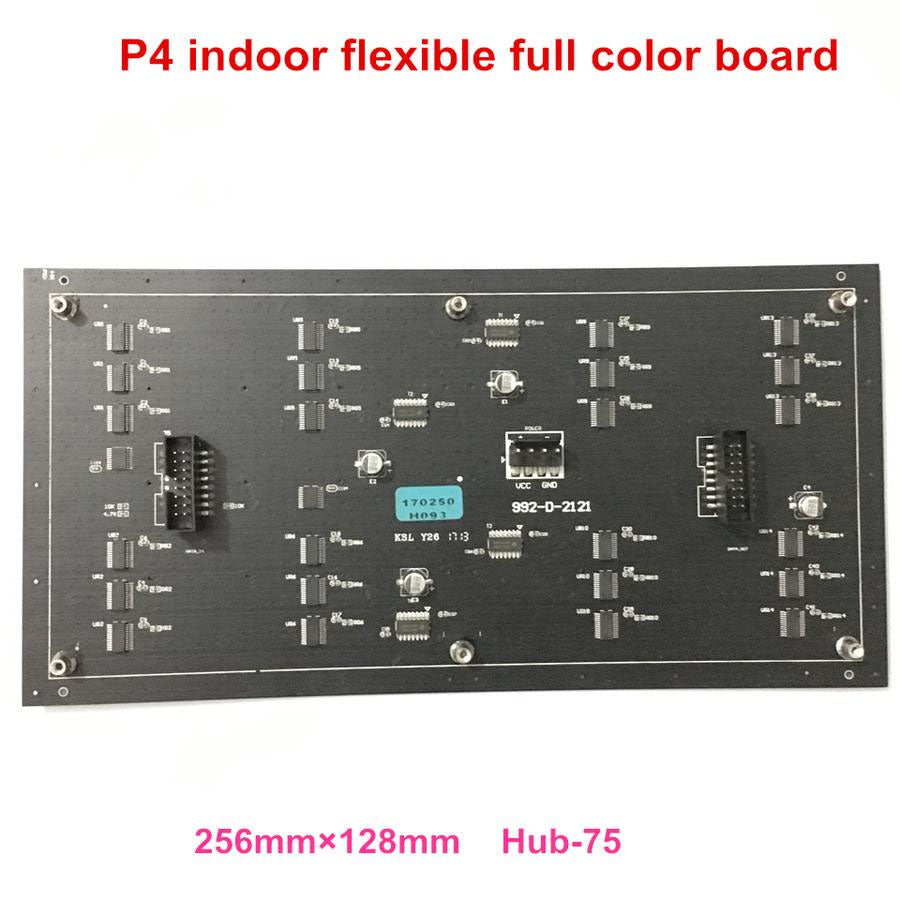

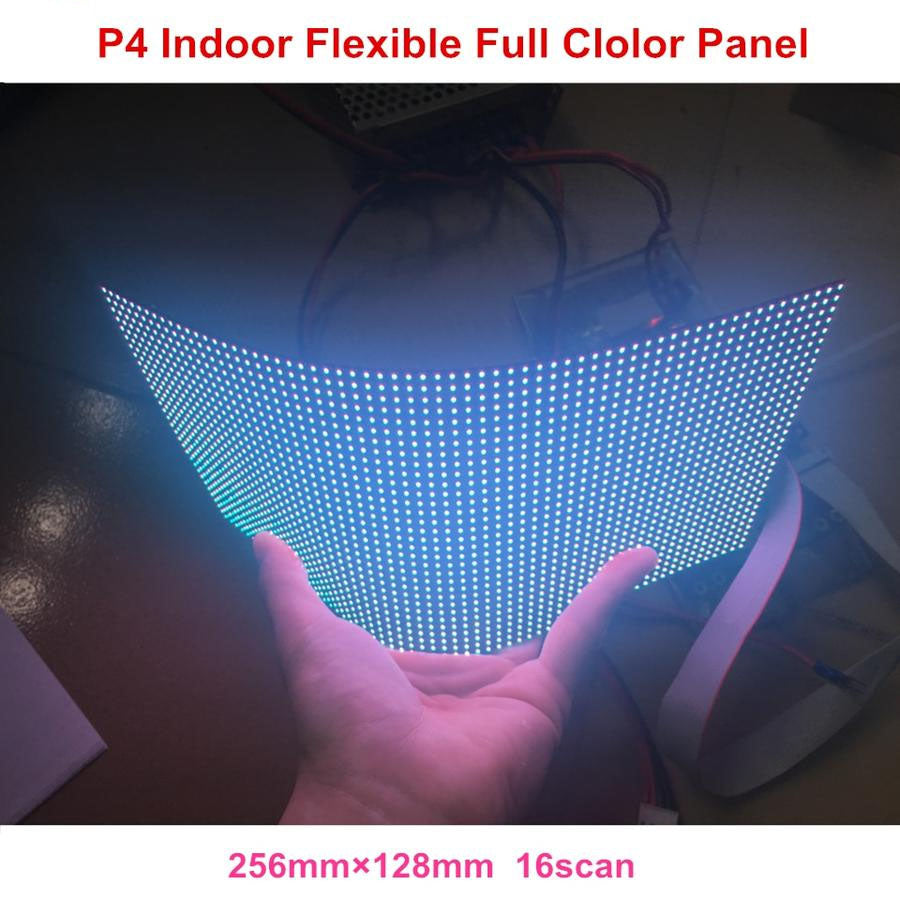

- This product uses soft PCB board, flexible nearly 180', suit for special shapes screen

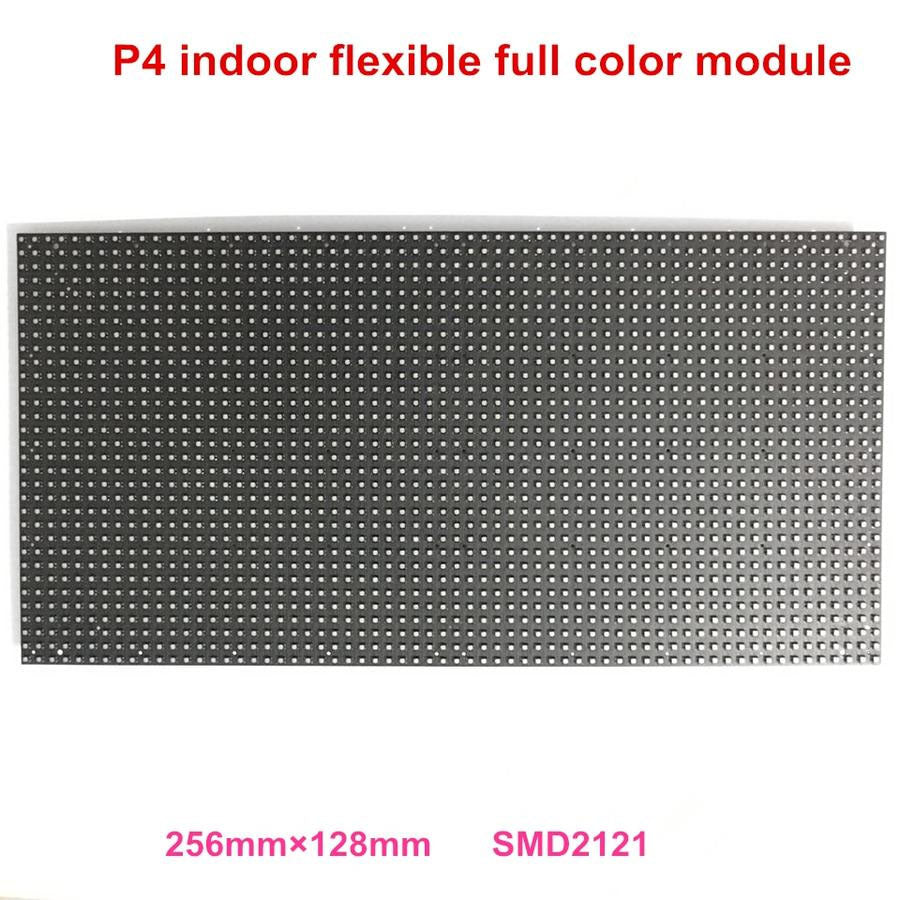

- SMD 2121 black lamps, without suit and mask
|LED Lamps||SMD2121(Customizable Nationstar lamp)|
|Driver IC||Universal chip(Customizable MBI5166/MBI5124)|
|Mask||Pure Black mask-high contrast screen|
|Brightness Of White Balance||≥1200cd/m²|
|View Angle||140 degree ( horizontal) 140degree(vertical)|
|Display Color||3-in-1 RGB|
|Brightness Adjustment||100 levels|
|Operation Power||AC100-240V 50-60HZ Switch-able|
|Maxim Power Consumption||1000 w/m²|
|Average Power Consumption||500 w/m²|
|Correction Scale Level||16bits|
|Screen Refresh Frequency||1840Hz|
|Support Input||HDMI,DVI,VGA,RJ45,USB,Serial Port|
|Control Distance||Ethernet cable 100m, optical fiber 5km|
|Support VGA Mode||800×600,1024×768,1280×1024,1600×1200,1920×1080|
|Color Temperature||5000-9300 adjustable|
|Brightness Correction||dot by dot, module by module, cabinet by cabinet|
|Humidity||Storage:10-70% RH ; Opreration:10--60% RH|
|Operating Life||≥100,000 hours|
|Continuous Working Time||≥48 hours|
|Out of Control Pixel Rate||0.03%|
