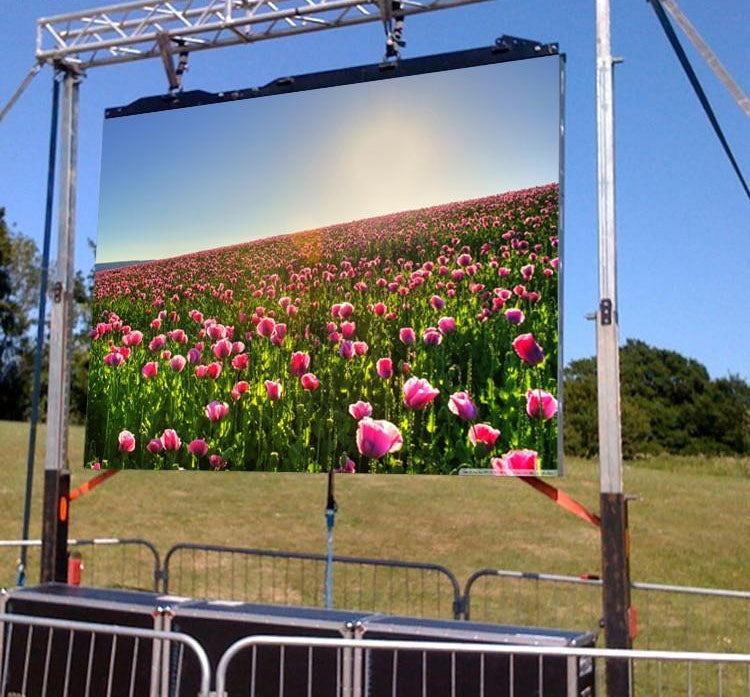

1.Wide Application: Stage rental events, entertainment, indoor and outdoor environment.
2.Light Weight:Using aluminum profile material, the cabinet weight is only 7kg.
3.High Contrast Ratio: novel design of mask,contrast ratio can reach 4000:1.
4.Quiet:Direct current fan only has little noise.
5.Thin:the thickest part of cabinet is only 60mm.
6.High Precision:each cabinet of precision deviation <0.5mm.
7.High Refreshing:Usually 2500Hz by MBI IC,but it can reach higher refresh rate if use better IC.

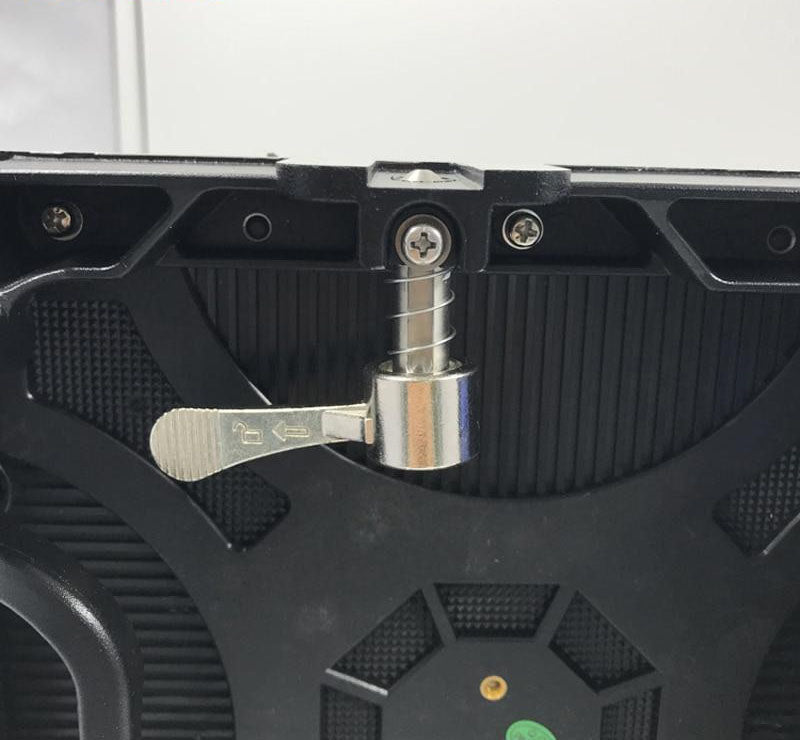

8.Convenient and Fast Installation.
Specification
Pixel Pitch
4.81 mm
Pixel Density
43264dots/sqm
Color Configuration
1R1G1B
LED Package
SMD2727
Module Size
250mm x 250mm
Module Resolution
52dots x 52dots
Drive Mode
1/13 Scan Constant Current
Brightness
>6000cd/sqm
Viewing Distance
4m-50m
Cabinet Size
500mm x 500mm
Cabinet Material
Die-casting Aluminum
Cabinet Weight
7KG
Viewing Angle
H: 120°; V:120°
Refresh Rate
2500HZ
Frame Rate
120frame/sec
Grey Scale
16.7M colors(Synchronized)
Color Temperature
R.G.B brightness 256 level adjustable
Power Input
AC110V/ 220V ±10, 50HZ
Max Power Consumption
800W/sqm
Ave. Power Consumption
300W/sqm
Storage Temperature
-40~+85 degree
Working Temperature
-20~+65 degree
Blind Spot Rate
<1/10000
MTBF
>10,000 Hours
Life Span
>100,000 Hours
Waterproof
Front: IP65 Rear: IP54
Operating Humidity
10%~95%
Control System
LINSN/NOVA
Control PC
With DVI Graphic card
PC Display Resolution
1280x1024
Operating System
Win 98, Win2000, XP, Win7 ,Win8.etc
Video Signal Mode
RF,S-Video, RGB, RGBHV, YUV, YC etc
Certificate
CE, RoHS
