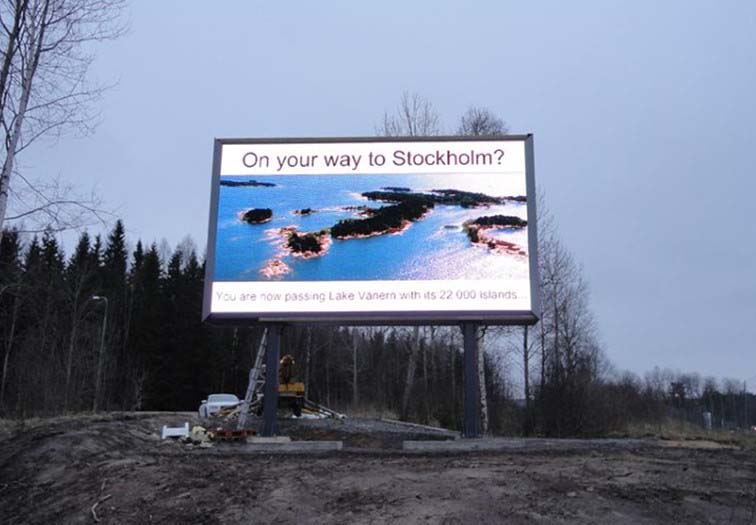

Leadleds Custom Order Led Display Advertising Billboard Outdoor LED Wall Wireless, 8.4x 4.2 Ft
HD LED TV Wall Super Brightness Outdoor Waterproof Single side or 2-sided option
Single Side Size: 2.56 x 1.28 Meters （8.4x 4.2 ft ）
Double-Sided Size: 2.56 x 1.28 Meters （8.4x 4.2 ft ）
Leadleds Series Features & Advantages
◆3 times the aging process.
◆Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test.
◆Long service time and low attenuation by applying dual channels for heat dissipation.
◆High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function.
◆No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
How to control LED displays?
By computer, TCP/IP, WiFi, cloud. Yes, you can control in your convenient management.
Many LED screens together? No problem, your laptop can manage all of them whenever and wherever.
Ultra-High / Low Temperature
Leadleds series design for working in all-weather outdoor environments. High protection grade of IP65 is suitable for winter and cold areas like North European countries and Russia, and high temperatures like KSA, Oman, UAE, etc.
SMD Performance and View Angle
Better contrast ratio and viewing performance Wide viewing angle increase its value by covering more viewing.
|
1. Pixel |
|||||
|
Pixel Pitch |
8mm |
|
|
|
|
|
Pixel Configuration |
SMD3535 RGB 3in1 |
|
|
|
|
|
Environment |
outdoor |
|
|
|
|
|
Pixel Density |
15625 dots/m2 |
|
|
|
|
|
Wavelength( nm) |
Red: 625-630nm, Green: 525-530nm, Blue: 465-470nm |
|
|
|
|
|
Luminous Intensity ( um) |
Red: 300-500um, Green: 1300-1500um, Blue: 250-500nm |
|
|
|
|
|
2. Module |
|||||
|
Module Resolution |
40*20 dots |
|
|
|
|
|
Module Pixels |
800 dots |
|
|
|
|
|
Module Size |
320*160 mm |
|
|
|
|
|
4. Screen parameters |
|||||
|
Best Viewing Distance |
5 -80m |
|
|
|
|
|
Color processing |
Full color |
|
|
|
|
|
Brightness |
≥6000 cd/m2 |
|
|
|
|
|
Brightness(Max./ Min.) |
1.2:1 |
|
|
|
|
|
Colors |
65536*65536*65536=281trillions colors |
|
|
|
|
|
waterproof |
IP65 |
|
|
|
|
|
View Angle |
Horizontal 140° Vertical 140° |
|
|
|
|
|
Life Span |
≥100000 hours |
|
|
|
|
|
Working Temperature |
- 20ºC to + 55ºC |
|
|
|
|
|
humidity-operating |
10%~95% |
|
|
|
|
|
Operating System |
WIN7/WIN8/WIN10, Android 4.3 and IOS 7.0 or above |
|
|
|
|
FAQ
Q1: How long is the producing time?
A: Generally, for small orders of 1-5 sets, it will take 12 to 18 business days after receiving your order. For batch orders, the production time depends on the order quantity.
Q2. How to ship the order?
A: For small orders like 1-5 sets, we use FedEx/DHL/UPS, the express takes 5-10 business days to your doorsteps.
For batch orders, we ship the orders by marine or by air depending on your demand.
Q3. How to ensure delivery safety?
A: The LED display will be packed with shockproof packaging material, with a wooden case for 360-degree protection.
Q4: How can you ensure your led display product quality?
A: Leadleds Opto-electronics have been enrolled in the led display industry for over 15 years, and professional R&D team and skilled QC team with a standard process to assure quality products.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
