Leadleds Flexible Led Module Full Color Led Panel Matrix RGB Video Display
Tube Chip Color: Full Color
Model Number: P4
Usage: Indoor
is_customized: Yes
Display Function: Video
Pixels: 4mm
Chip: 2121(black)
Module Size: 256mm*128mm
Module Resolution: 64*32
Module Weight: 0.3kg
Interface Way: HUB-75(16scan)
Driving Method: Constant Current Driving
Control Method: Synchronous Control
Max power: 20w/pcs
Play Format: Videos,Images ,Texts etc

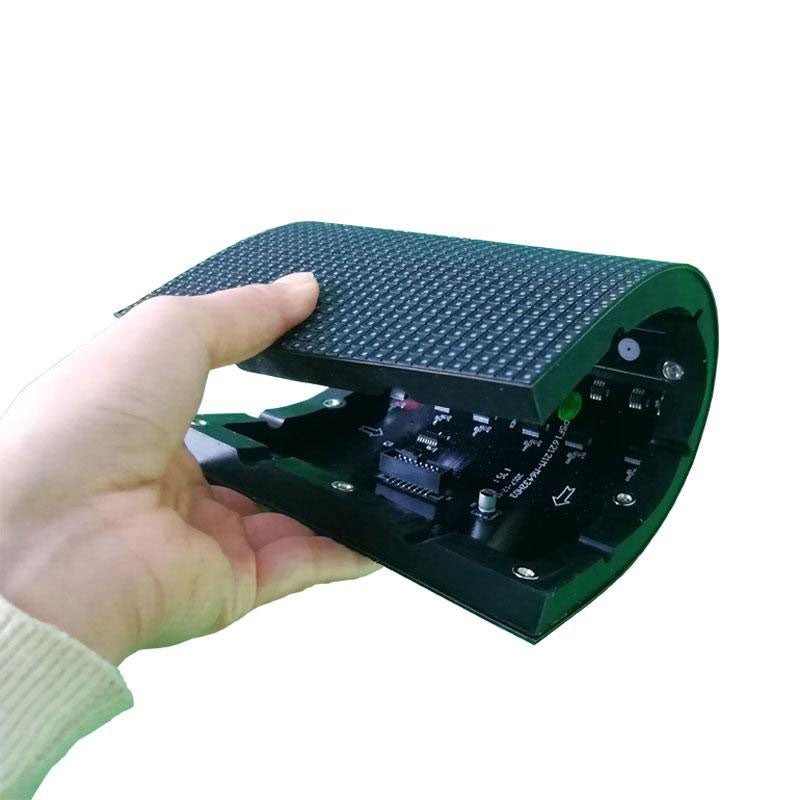

- This product uses soft PCB board, flexible nearly 180', suit for special shapes screen
- SMD 2121 black lamps, without suit and mask
Specification
| Module Parameter | |
| Size | 128mm(H)×256mm(H) |
| Module Resolution | 32(H)×64(V) |
| Pitch | 4mm |
| Density | 62.500 pixels/m² |
| LED Lamps | SMD2121(Customizable Nationstar lamp) |
| Driver IC | Universal chip(Customizable MBI5166/MBI5124) |
| Module Refresh | 4096hz |
| Mask | Pure Black mask-high contrast screen |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness Of White Balance | ≥1200cd/m² |
| View Angle | 140 degree ( horizontal) 140degree(vertical) |
| View Distance | 4m-20m |
| Gray Scale | 65536 |
| Display Color | 3-in-1 RGB |
| Brightness Adjustment | 100 levels |
| Power Supply | |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 1000 w/m² |
| Average Power Consumption | 500 w/m² |
| Control System | |
| Correction Scale Level | 16bits |
| Screen Refresh Frequency | 1840Hz |
| Gamma Correction | -5.0—5.0 |
| Support Input | HDMI,DVI,VGA,RJ45,USB,Serial Port |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200,1920×1080 |
| Color Temperature | 5000-9300 adjustable |
| Brightness Correction | dot by dot, module by module, cabinet by cabinet |
| Reliability | |
| Temperature | Storage:-35℃-+80℃; Operation:-25℃-+45℃ |
| Humidity | Storage:10-70% RH ; Opreration:10--60% RH |
| Operating Life | ≥100,000 hours |
| MTBF | ≥5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP25 |
| Out of Control Pixel Rate | 0.03% |
